Produktbeschreibung Mediaplayer

Die UniVideo bietet verschiedene Mediaplayer für den professionellen Einsatz an. Einmal Mediaplayer, die zur Einspeisung an jeden handelsüblichen Monitor oder Beamer geeignet sind um im Endlos-Loop Filme abzuspielen. Weiterhin bieten wir Mediaplayer an, die für den Einsatz im Digital Signage-Bereich geeignet sind und der Content per Netzwerk, FTP-Server oder auch per CF-Karte aktualisiert wird.

Produktdetails: Mediaplayer



ModellDigiMovie HD-MiniDigiMovie HD-PX-SeriesDigiMovie PCB

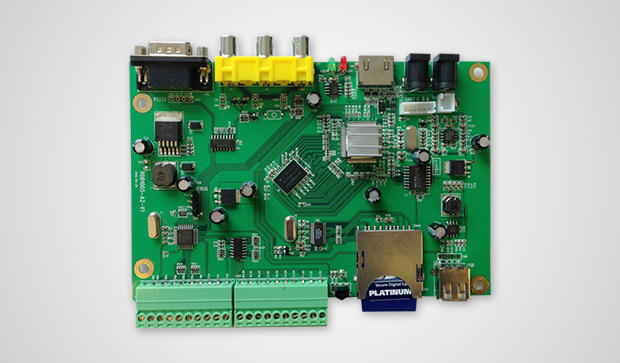

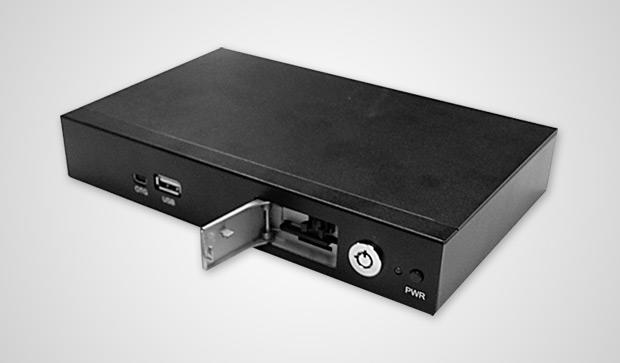

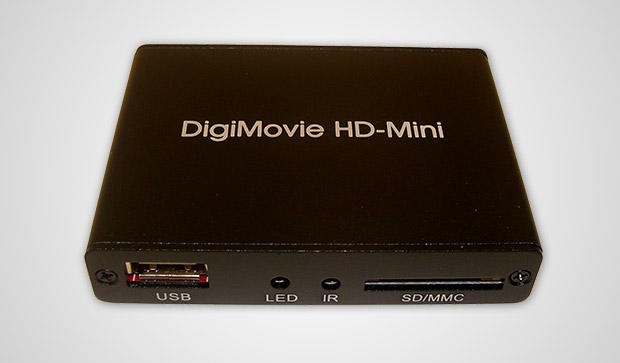

  DigiMovie HD-Mini DigiMovie HD-PX Series DigiMovie PCB
Ports HDMI, Composite Video (Mini-Jack) HDMI, Video, Y.Pb.Pr, VGA and Audio output Input: USB-Port, 20-Pin I/O Port, RS232
Output: HDMI, Composite Video (Cinch), Audio Stereo L/R (Cinch)
Memory SD / SDHC / MMC, Hard Disk via USB CF-Card SDHC / USB-Drive (USB Flash Drive)
Functions
  • Autoplay, Auto loop playback media files once power onPlayback mode: play one, play all
• Supports reading from external USB HDD, Flash Drive, Card Reader
• Full HD up to 1080P
• Support HDMI & AV outputs
• Multiple Display Zone (displays stored videos, pictures and scrolling text on the screen simultaneously)
• Schedule Function
• FTP Auto-Download Function
• HTTP Control Function
• Embedded FTP Server
• SlideShow Funktion
• Log Funktion
• Play with simultaneous FTP download
• Content update over USB key
• Control with external sensors or buttoms
• playlist
• Synchronous function: Different players can be synced (RS 232)
Supported Mediaformats
Video Formats: AVI / MPG / MPEG / VOB / DAT / DIVX / MOV / MKV / MP4 / TS / TP / RM / RMVB / M2TS / WMV / FLV
FULL 1080P codec: MPEG 2, MPEG4(XVID), H264, WMV9/VC-1, MJPEG, FLV, Real Video (up to 720p)
AVI / MPG / VOB / MOV / WMV9
(up to 1680x1050 over the VGA output and 1080P over the HDMI output )
Bitrate up to 40 Mbit/Sec
MPEG 1, MPEG 2, MPEG 4, DIVX, WMV9, H263, H264
Audio MP3, WMA, MAV, OGG, AAC, APE, FLAC, RA, AC3, DTS WMA, MP3 MP3, WMA, AAC
Picture JPG / BMP, PNG, GIF JPEG JPEG, bmp, tiff
General Information
Power AC 110-240 V DC 5V 2A DC 12V 1,5A, 18W DC 12V 1,5A, 18W
Accessoires AV Cable, HDMI Cable, Remote Controller, Power Supply, User Manual Authoring Software, Power supply, User manual, Remote Controller User manual, Remote Controller, 2 terminal blocks
Optional accessoires
  HDMI Cable, Memory Card WiFi Touch Sensor Button, Play Button Box, Bar-Code Scanner, IR Cable, PIR Sensor
Other
Download Datenblatt Datenblatt Datenblatt
Produktdetails: Basis Android

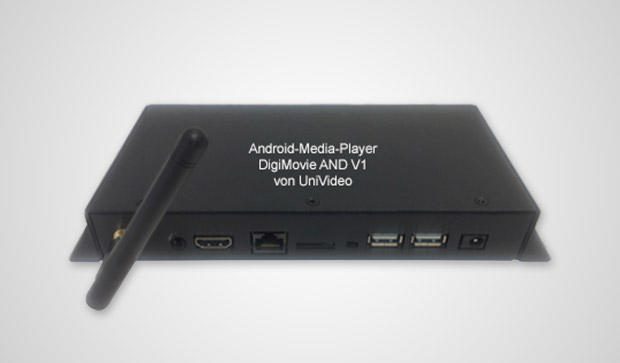

ModellDigiMovie Android 1
  DigiMovie Android 1
Hardware
Processor Freecale i.MX53 ARM Cortex A8 1Ghz
Ram DDR3 1GB
Flash Memory System: 4GB
Content: SD/SDHC up to 32GB
Networking 10/100 Mbps Ethernet Connection
802.11 b/g/n Wifi
3G (optional)
Ports Video-Output: 1 x HDMI, 1 x VGA
Audio-Output: 1 x Phone jack
Expansion: 1 x Mini-USB (OTG), 3 x Type-A-USB Host, 1 x RS-232
System and Application
Operating System Android 2.3.3
Resolution up to FullHD 1080
Memory SD / SDHC
Functions
  Multi-Zone Layout (1 x Video, 2 x Image, 1 x HTML, 1 x RSS, 1 x Marquee, 1 x Clock, 1 x Date
  Single cell battery to maintain real time clock
Supported Mediaformats
Video MP4, WMV
Picture BMP,PNG,JPEG,GIF
Audio MP3
General Information
dimensions (W x H x D) / weight 196 x 33 x 122,8 mm / 655g
Power DC 12V 2A, 24W
Accessoires Power supply, User manual, Remote Controller, Authoring-Software
(Program Works and Schedule Works)
Optional accessoires
  HDMI Cable, SD-Card
Other
Download Datenblatt
