POS Media Displays | UniVideo Mediasolutions

Produktbeschreibung POS Media Displays

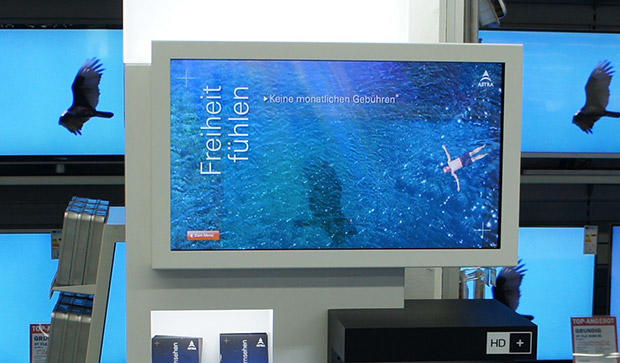

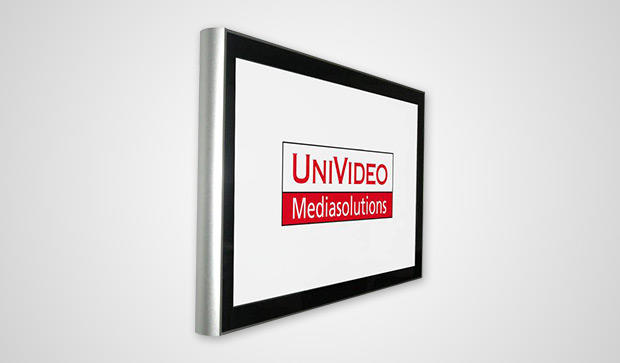

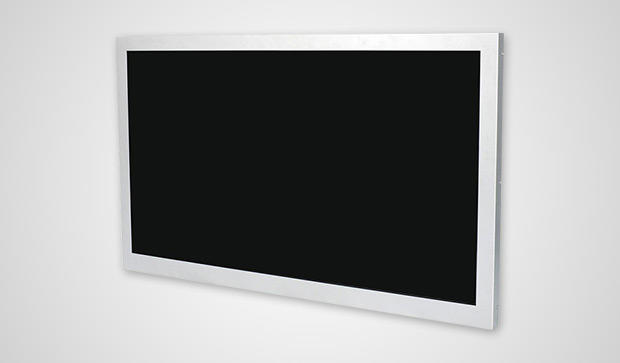

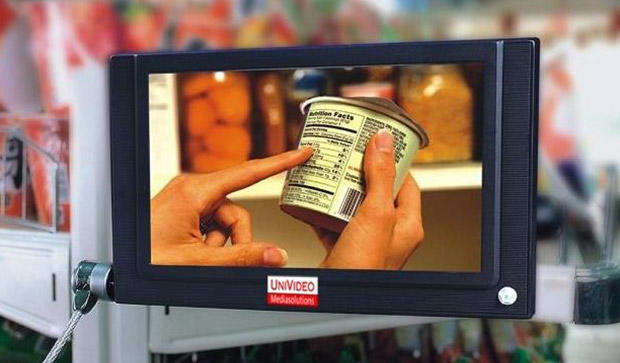

Die UniVideo Mediasolutions bietet unter dem Begriff „POS-Media-Display“ LCD/LED-Monitore mit integriertem Media-Player an, die als Stand-alone-Lösung Filme im Endlos-Loop abspielen. Dabei sind die Geräte, die alternativ in einem Metall- oder Kunststoffgehäuse erhältlich sind, einfach zu handhaben, in den gängigen Bildschirmdiagonalen verfügbar und besitzen alle technischen Eigenschaften für den professionellen Einsatz am Point of Sale.

Produktdetails: 7", 10" und 15"

Model	UV-70-SED-USB	UV-102-SE-USB	UV-154-VK-PL2

Panel
Screensize	7 inch	10 inch	15,4 inch
Resolution	800 x 480	800 x 480	1280 x 768
Aspect Ratio	16:10	16:9	16:10
Function
Playback mode	Auto-loop once power on, Repeat one, repeat all
Motion-Sensor	mute or standby	mute or standby	optional
Content-Update	Via USB-Drive, or Memory-Card exchange
Supported formats
Video	MPEG1 / MPEG2 / AVI (Divx/XVid)
Picture	JPG
Audio	MP3, WAV	MP3	MP3
Memory	SD-Card / USB drive
Speaker	2 x 2 W	2 x 3 W	2 x 2 W
General Information
dimensions / weight (WxHxD)	204 x 125 x 36 mm / 0,75 kg	330 x 190 x 40 mm / 1,1 kg	378 x 267 x 42 mm / 2,3 kg
Vesa	optional	50 x 50 mm 75 x 75 mm	75 x 75 mm
Power	AC 110-220V DC 12V 1,5A, 18 W	AC 110-220V DC 12V 1,5A, 18 W	AC 110-240V DC 12V 5A, 60W
Accessories	power supply, remote controller, user manual	power supply, remote controller, user manual	power supply, remote controller, user manual
Optional accessories
	Vesa mount adapter
Downloads	Datenblatt	Datenblatt	Datenblatt

Produktdetails: 19" und 22"

Model	UV-185-VK-W	UV-220-VK-W

Panel
Screensize	18,5 inch	22 inch
Resolution	1366 x 768	1680 x 1050
Aspect Ratio	16:9	16:10
Function
Playback mode	Auto-loop once power on, Repeat one, repeat all	Auto-loop once power on, Repeat one, repeat all
Motion-Sensor	-	mute or standby
Content-Update	Via USB-Drive or Memory-Card exchange
Supported formats
Video	MPEG1 / MPEG2 / AVI (Divx/XVid)	MPEG1 / MPEG2 / AVI (Divx/XVid)
Picture	JPG, BMP	JPG
Audio	Mp3	Mp3
Memory	CF- and SD-Card / USB drive
Speaker	2 x 3W	2
General Information
dimensions / weight (WxHxD)	440 x 307 x 34 mm / 4,5 kg	510 x 350 x 40 mm / 7kg
Vesa	100 x 100 mm	100 x 100 mm
Power	AC 110-240V DC 12V 5A, 60W	AC 110-220V DC 12V 5A, 60W
Accessories	power supply, remote controller, user manual	power supply, remote controller, user manual
Optional accessories
Downloads	Datenblatt	Datenblatt

Produktdetails: 32" und 42"

Model	UV-320-VK-W	UV-320-VK-W-PL

Panel
Screensize	32 inch	32 inch
Resolution	1366 x 768	1366 x 768
Aspect Ratio	16:9	16:9
Function
Playback mode	Auto-playback after Power on, Play one/Play all	Auto-playback after Power on, Play one/Play all
Motion-Sensor	-	-
Content-Update	Via USB-Drive
Supported formats
Video	MPEG1 / MPEG2 / AVI (Divx/XVid)	MPEG1 / MPEG2 / AVI (Divx/XVid)
Picture	JPG	JPG
Audio	Mp3, Wav	Mp3
Memory	CF-Card / USB drive	CF-Card / USB drive
Speaker	2 x 8 W	2 x 5 W
General Information
dimensions / weight (WxHxD)	760 x 450 x 93 mm / 19 kg	792 x 510 x 102 mm / 9,5 kg
Vesa	300 x 200 mm	440 x 170 mm
Power	AC 110-220V, 180W	AC 110-220V
Accessories	power supply, remote controller, user manual	power supply, remote controller, user manual
Optional accessories
Downloads	Datenblatt	Datenblatt

Produktdetails: Full HD 18,5" und 22"

Model	UV-185-SHE-HD-PL	UV-215-SHE-HD-PL	UV-215-HD-PS

Panel
Screensize	18,5 inch	21,5 inch	21,5 inch
Resolution	1366 × 768	1920 × 1080	1920 × 1080
Aspect Ratio	16:9
Function
Playback mode	Auto-loop once power on, Repeat one, repeat all, scheduled playlist repeat Daily timer by remote control	Auto-loop once power on, Repeat one, repeat all, scheduled playlist repeat Daily timer by remote control	Auto-loop once power on, Repeat one, repeat all, scheduled playlist repeat
Motion-Sensor	No	No	optional
Content-Update	Memory-Card exchange
Supported formats
Video	MPEG2, MPEG 4, AVI, MPG, RM, RMVB, VC1, MOV, M2TS	MPEG2, MPEG 4, AVI, MPG, RM, RMVB, VC1, MOV, M2TS	MPEG1 / MPEG2 / AVI (Divx/XVid) , MP4, RMVB, RM
Picture	JPEG	JPEG	JPG, BMP
Audio			MP3
Memory	SD card	SD card	CF card / SD card / USB drive
Speaker	2 x 3 W	2 x 3 W	2 x 5 W
General Information
dimensions / weight (WxHxD)	468 x 288x 37 mm	538 x 331x 37 mm / 3,5 kg	560 x 323 x 60 mm / 5,7 Kg
Vesa	75 x 75 mm	100 x 100 mm	100 x 50 mm
Power	AC 110-220V, 18W	AC 110-220V, 25W	AC 110-220V, 60W
Accessories	power supply, remote control, user manual
Optional accessories
Downloads	Datenblatt	Datenblatt	Datenblatt

Produktdetails: Full HD 32" und 42"

Model	UV-320-HD-PS	UV-420-HD-PS	UV-420-VK-W-HD

Panel
Screensize	32 inch	42 inch	42 inch
Resolution	1920 x 1080	1920 x 1080	1920 x 1080
Aspect Ratio	16:9	16:9	16:9
Function
Playback mode	Auto loop playback media files once power on Repeat one, repeat all
Motion-Sensor	no
Content-Update
	via USB drive or memory card exchange
Supported formats
Video	MPEG1 / MPEG2 / AVI (Divx/XVid) / MP4 / RMVB / RM	MPEG1 / MPEG2 / AVI (Divx/XVid) / MP4 / RMVB / RM	MPEG1 / MPEG2 / AVI (Divx/XVid), MP4, TS, TRP, WMV, RM, RMVB
Picture	JPG, BMP	JPG, BMP	JPG, BMP
Audio	MP3, WMA	MP3, WMA	MP3, MP2 Layer 1, WMA
Memory	SD- / CF-Card	SD- / CF-Card	CF-Card
Speaker	2 x 8 W	2 x 10 W	2 x 3 W
General Information
dimensions / weight (WxHxD)	800 x 475 x 85 mm / 18,25 kg	1015 x 600 x 92 mm / 22,9 kg	1055 x 620 x 100 mm / 36 kg
Vesa	200 x 200 mm	400 x 600 mm	650 X 280 mm
Power	AC 110-240V, 125W	AC 110-240V, 125W	AC 110-220V, 180 W
Accessories	power supply, remote controller, user manual		power supply, remote controller, user manual, VESA bracket
Optional accessories
Downloads	Datenblatt	Datenblatt	Datenblatt
